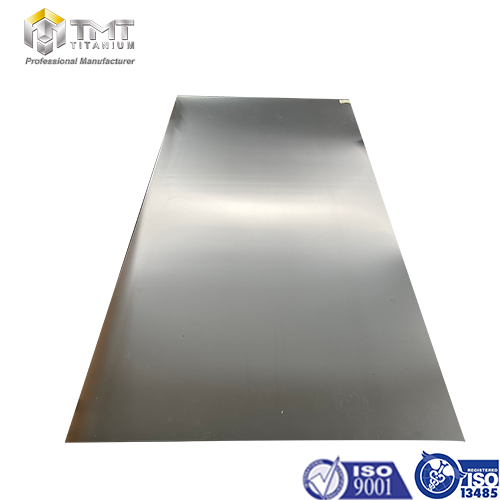

ISO5832-2 ASTM F67 GR3 Titanium Sheet For Sale

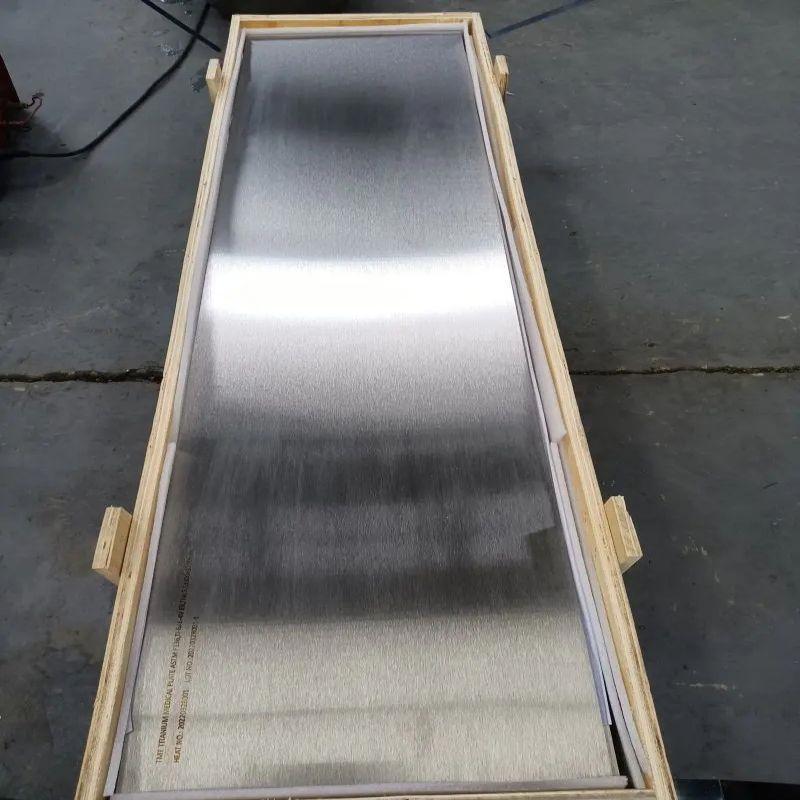

ASTM F67 Titanium Sheet For Sale

ASTM F67 Gr3 Titanium Sheet is a type of titanium alloy made from grade 3 titanium. It is a strong and lightweight material that is often used in the aerospace and medical industries. It is corrosion-resistant and has excellent strength-to-weight ratio, making it an ideal material for applications that require high strength and low weight.

Data Sheet

Standard	Composition  (ASTM Grade)  [Common Name]	Chemical Composition	Physical Properties
ISO5832-2 ASTM F67	Gr.1, UNS R50250,  3.7025	Pure Titanium (≥99.0% Ti)	Density: 4.51 g/cm³ Tensile strength: 240 MPa Yield strength: 170 MPa Elongation: 24%
	Gr.2,  UNS R50400,  3.7035	Pure Titanium (≥99.0% Ti)	Density: 4.51 g/cm³ Tensile strength: 345 MPa Yield strength: 275 MPa Elongation: 20%
	Gr.3,  UNS R50550,  3.7055	Pure Titanium (≥99.0% Ti)	Density: 4.51 g/cm³ Tensile strength: 450 MPa Yield strength: 380 MPa Elongation: 18%
	Gr.4,  UNS R50700,  3.7065	Pure Titanium (≥99.0% Ti)	Density: 4.51 g/cm³ Tensile strength: 550 MPa Yield strength: 483 MPa Elongation: 15%

ASTM F67 Grade 1-4:

• Biocompatibility: All grades of ASTM F67 titanium are biocompatible and widely used in medical implants, such as dental implants and orthopedic implants.
• Corrosion resistance: All grades of ASTM F67 titanium have good corrosion resistance, which is important for applications.

• Low modulus: ASTM F67 titanium has a lower modulus of elasticity compared to other medical implant materials, which can help reduce stress shielding and improve long-term implant performance.
• Cost: ASTM F67 titanium is generally more cost-effective than other medical implant materials, such as cobalt-chromium alloys and ceramic materials.

However, it's important to note that the differences in strength between these grades are relatively small and may not be significant for certain applications.

It's also worth noting that Ti-6Al-4V Eli, which is a different titanium alloy, has significantly higher strength than any of the ASTM F67 grades. So, if you require high strength in your application, Ti-6Al-4V Eli might be a better choice.

TMT Industry is a leading manufacturer of medical-grade titanium, meanwhile has rich experiences in exporting Medical Stainless Steel, CoCrMo, tantalum, Nitinol, and PEEK products. Our Medical Titanium products include bars, rods, sheets, plates, discs, forgings, cannulated bars, profiles, and powders, while our Stainless Steel products include bars, rods, sheets, and profiles. We also offer Medical CoCrMo bars, rods, plates, and ingots, Medical Tantalum Wire, and Medical Nitinol Wire and tubing. Our PEEK products include bars and granules. Our products are widely used in the medical industry for various applications, including medical devices, surgical instruments, and more.
